螺帽

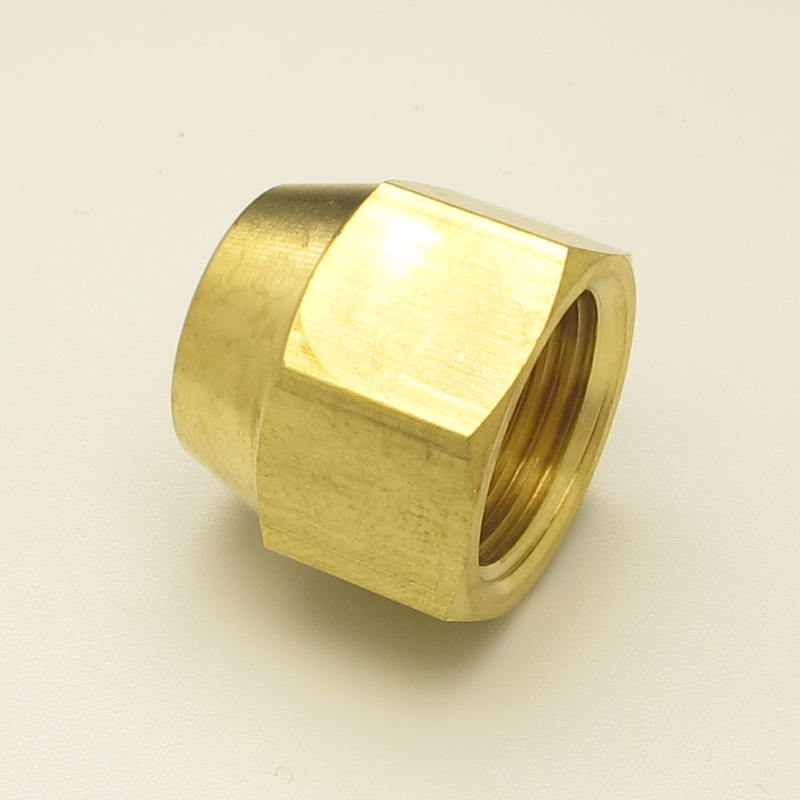

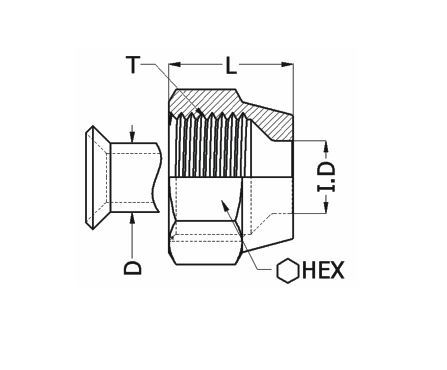

H01 螺帽 Nut
| 產品編號 | 適用管徑 D | 直牙 T | L | SW | I.D |
| Part No. | Tube Size D | Thread T | |||
| H01-15 | 3/16 | 3/8-24 | 13.5 | 11 | 4.95 |
| H01-2 | 1/4 | 7/16-20 | 14.5 | 14 | 6.6 |
| H01-25 | 5/16 | 1/2-20 | 14.5 | 16 | 8.2 |
| H01-3 | 3/8 | 9/16-18 | 16 | 19 | 9.8 |
| H01-3-1 | 3/8 | 5/8-18 | 17.7 | 19 | 9.8 |
| H01-4 | 1/2 | 3/4-16 | 21 | 24 | 13 |
| H01-5 | 5/8 | 7/8-14 | 22 | 27 | 16.2 |
| H01-6 | 3/4 | 1"1/16-14 | 25 | 32 | 19.3 |

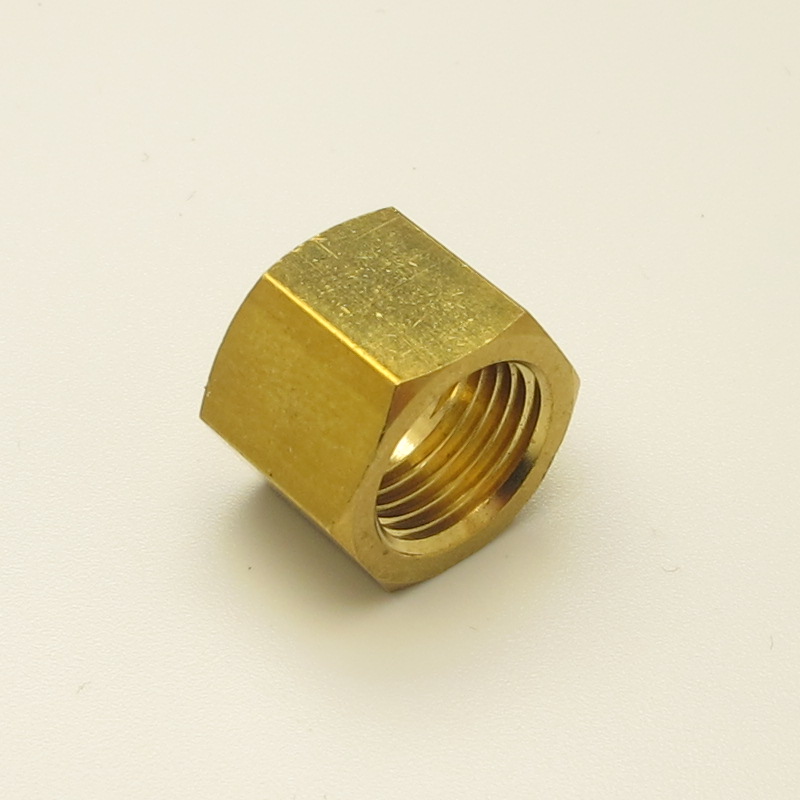

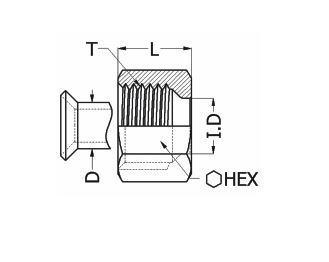

H01-0 平口螺帽 Short Nut
| 產品編號 | 適用管徑 D | 直牙 T | L | SW | I.D |
| Part No. | Tube Size D | Thread T | |||
| H01-3-0 | 3/8 | 9/16-18 | 12.7 | 17 | 9.8 |

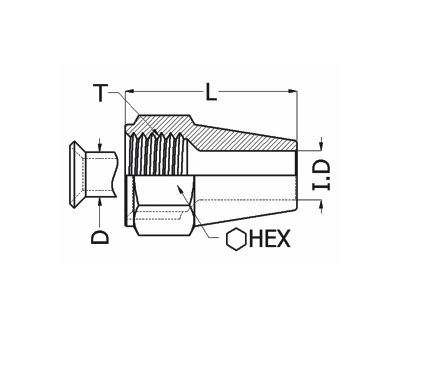

H01-L 長螺帽 Long Nut
| 產品編號 | 適用管徑 D | 直牙 T | L | SW | I.D |
| Part No. | Tube Size D | Thread T | |||
| H01-15L | 3/16 | 3/8-24 | 20.5 | 11 | 4.95 |
| H01-2L | 1/4 | 7/16-20 | 23.5 | 14 | 6.6 |
| H01-25L | 5/16 | 1/2-20 | 23.5 | 16 | 8.2 |
| H01-3-1L | 3/8 | 5/8-18 | 26.5 | 19 | 9.8 |
| H01-4L | 1/2 | 3/4-16 | 30 | 24 | 13 |
| H01-5L | 5/8 | 7/8-14 | 34.5 | 27 | 16.2 |
| H01-6L | 3/4 | 1"1/16-14 | 39 | 32 | 19.3 |

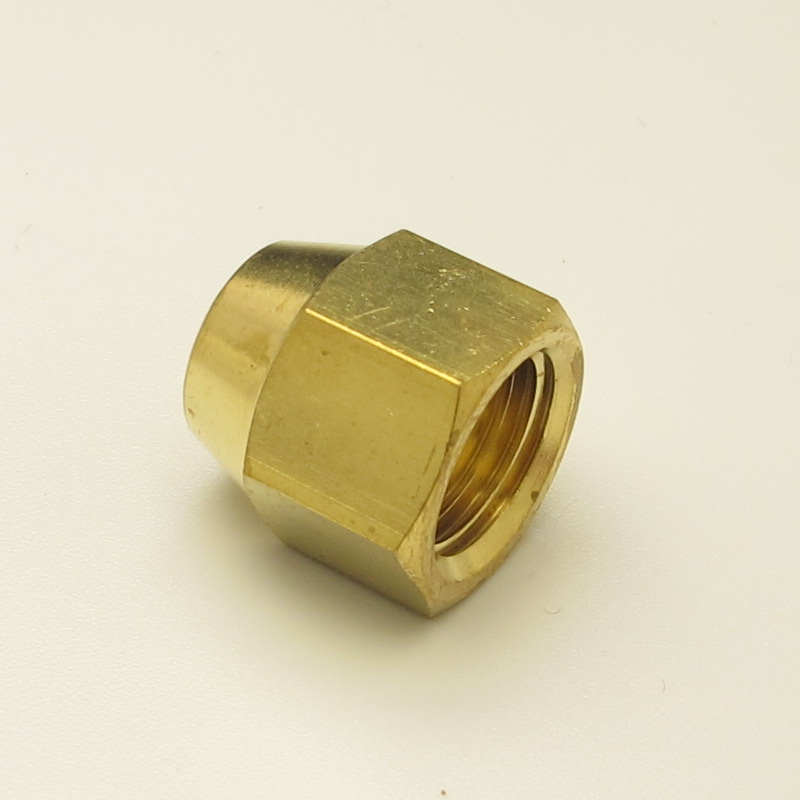

H01 減壓螺帽 Reducing Nut
| 產品編號 | 適用管徑 D | 直牙 T | L | SW | I.D |
| Part No. | Tube Size D | Thread T | |||
| H01-302-1 | 3/8 to 1/4 | 5/8-18 | 17.7 | 19 | 6.6 |
| H01-403 | 1/2 to 3/8 | 3/4-16 | 21 | 24 | 9.8 |
| H01-504 | 5/8 to 1/2 | 7/8-14 | 22 | 27 | 13 |
| H01-605 | 3/4 to 5/8 | 1"1/16-14 | 25 | 32 | 16.2 |
